Additional information
| Hinge Material | Carbon Steel |
|---|---|
| Weight | 158g |
| Length | 100mm |
| Diameter | 16mm |
| Depth | 20mm |
| Grease Function | No, Yes |
| Pin Material | Carbon Steel |
| Pin Length | 28mm |
| Pin Diameter | 8mm |
| Washer | Brass |

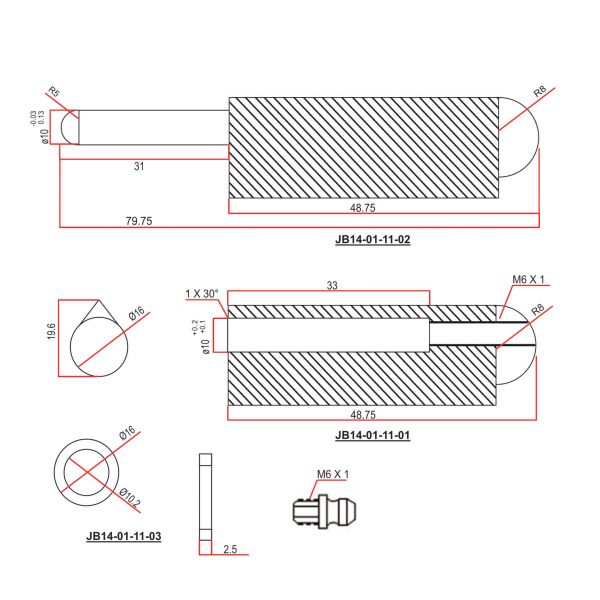

100mm (4 inch) Carbon Steel Weld on Hinge
From: £4.40 + VAT
100mm x 16mm carbon steel hinge, complete with a brass washer.
Also available with optional grease function.
Recommended weight per pair: 440 Pounds / 200 kg
*The weights are for comparison purposes only, environmental applications may effect these figures.
Ideal uses:
- Commercial building doors
- HGV trucks
- Industrial outdoor bins
Bulk order discounts
Over 10 hinges - 10% discount
Over 25 hinges - 35% discount
Over 100 hinges - 40% discount
